محل منبع:
چین
نام تجاری:
carterberg
گواهی:
IATF16949
شماره مدل:
CB-PBV

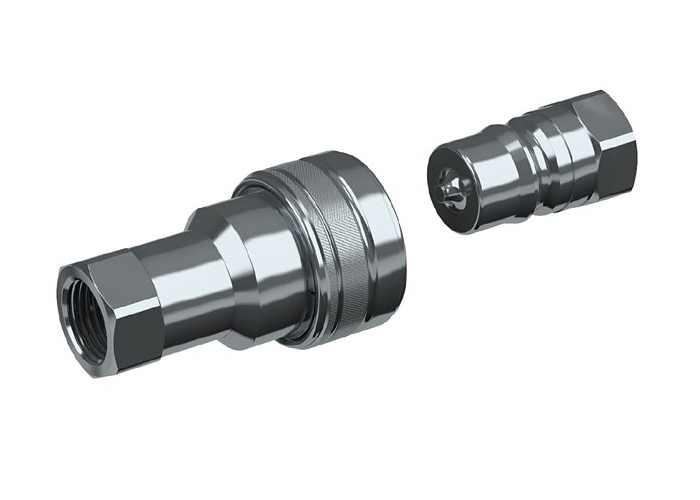

PBV ISO 7241-1 B Hydraulic Quick Coupler Cone Series - 100-500 Bar Steel Ball Locking for Heavy Machinery
PBV ISO 7241-1 B cone series hydraulic quick coupler adopts poppet valve and steel ball locking. Constructed with carbon steel, 316L stainless steel or brass, it operates at -25℃ to +100℃, 100-500 bar. Ideal for agriculture, construction, oil drilling, and metallurgy. Offers BSP/NPT threads, NBR/FKM/EPDM seals.
| Nominal size | Working pressure | Rated flow(ISO) | Max flow rate | Burst pressure | Fluid spillage | |||
| PBV | ISO | Mpa | l/min | l/min | Male(Mpa) | Female(Mpa) | Coupled(Mpa) | cc |
| 6 | 6.3 | 30 | 12 | 24 | 180 | 120 | 140 | 0.7 |
| 10 | 10 | 25 | 23 | 46 | 160 | 100 | 160 | 1.2 |
| 12 | 12.5 | 25 | 45 | 90 | 150 | 110 | 190 | 2.1 |
| 19 | 19 | 25 | 106 | 220 | 140 | 110 | 140 | 5.2 |
| 25 | 25 | 25 | 189 | 280 | 130 | 100 | 140 | 9 |
| 39 | 40 | 14 | 379 | 757 | 60 | 56 | 56 | 49 |
| 50 | 50 | 9 | 757 | 1000 | 45 | 38 | 80 | 75 |
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
