محل منبع:
شانگهای، چین
نام تجاری:
carterberg
گواهی:
IATF16949
شماره مدل:
CB-3

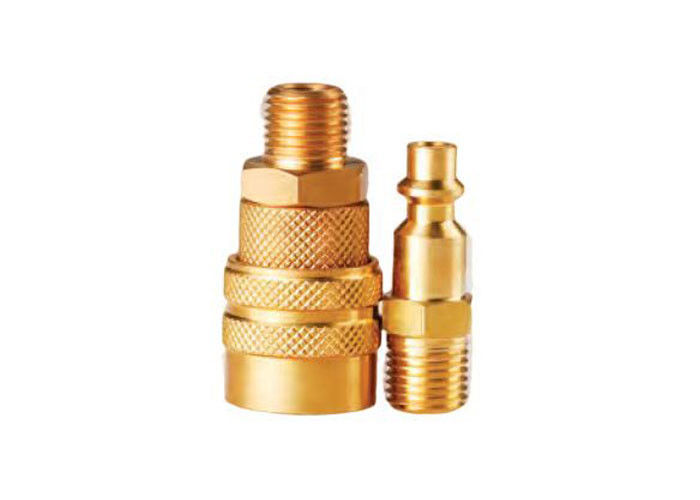

LAM AMERICAN TYPE SINGLE SHUT-OFF PNEUMATIC HIGH FLOW BRASS QUICK COUPLING

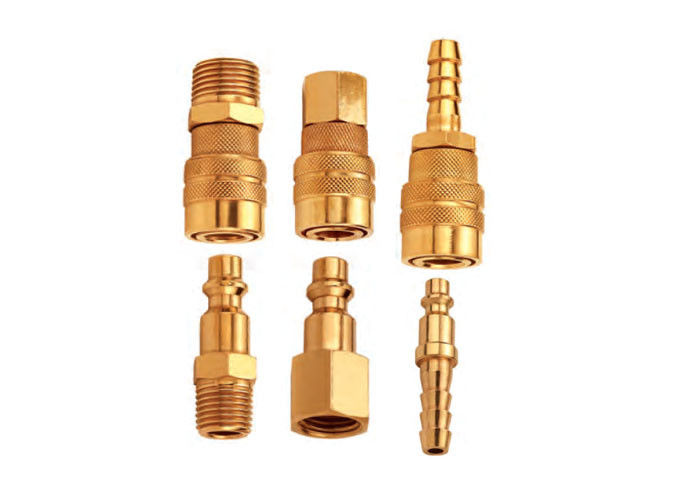

LAM AMERICAN TYPE SINGLE SHUT-OFF QUICK COUPLING(BRASS)
→ Features:ISO 6150B standard
→ Advantages:Simple structure, light weight, various of connections.
→ Application:pneumatic tools, automotive, compressed air, machinery equipments and compressor.
→ Interchangeability: Parker 20 series, Rectus 23KA series, Hansen 3000 series, CEJN 310 series.
→ Working Pressure:1.0 Mpa.
→ Working Temperature: -20℃ to +120℃.
| PARTNO. | LS | ￠D | HEX1 | A | T |
| LAM-02SM | 51 | 25 | 19 | 12 | 1/4 |
| LAM-03SM | 51 | 25 | 19 | 13 | 3/8 |
| LAM-04SM | 53 | 25 | 22 | 14 | 1/2 |
| PARTNO. | LS | ￠D | HEX1 | A | T |
| LAM-02SF | 49.5 | 25 | 19 | 12 | 1/4 |
| LAM-03SF | 49.5 | 25 | 19 | 13 | 3/8 |
| LAM-04SF | 49.5 | 25 | 24 | 15 | 1/2 |
| PARTNO. | LS | ￠D | HEX1 | A | T |
| LAM-02SH | 66 | 25 | 19 | 28 | 9 |
| LAM-03SH | 68 | 25 | 19 | 30 | 10.5 |
| LAM-04SH | 68 | 25 | 19 | 30 | 13 |
| PARTNO. | LP | C | HEX2 | A | T | d |
| LAM-02PM | 42 | 24 | 14 | 13 | 1/4 | 5 |
| LAM-03PM | 42 | 24 | 17 | 13 | 3/8 | 5 |
| LAM-04PM | 44 | 24 | 22 | 14 | 1/2 | 5 |
| PARTNO. | LP | C | HEX2 | A | T | d |
| LAM-02PF | 39 | 24 | 17 | 12 | 1/4 | 5 |
| LAM-03PF | 40 | 24 | 19 | 13 | 3/8 | 5 |
| LAM-04PF | 44 | 24 | 24 | 16 | 1/2 | 5 |
| PARTNO. | LP | C | CP | A | T | d |
| LAM-02PH | 59 | 24 | 19 | 30 | 9 | 5 |
| LAM-03PH | 59 | 24 | 19 | 30 | 10.5 | 5 |
| LAM-04PH | 59 | 24 | 19 | 30 | 13 | 5 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
